Aspire CF Passthrough Battery 900mAh

About Aspire CF Passthrough Battery 900mAh

Aspire is a rising sensation in the world of e-cigarettes and is well on its way to becoming a well-known vaping brand. Currently, aspire is focused on providing the high quality batteries and cartomizers. The most popular products of Aspire are Aspire CF battery series, and Nautilus Mini Series. Being a revolutionary in its field, Aspire is aiming to lead electronic cigarette to level higher than ever before.

Aspire CF is a unique vape that has a lot of choices when it comes to its batteries. The options that are available in the battery sections include the likes of Aspire CF G-Power, Aspire CF pass-through batteries, Aspire CF VV batteries that have a number of different electric charge options, sub ohm batteries of Aspire CF, and Aspire CF MAXX batteries which have a power of 50W. The availability of USB connection via a USB cable is one of the most convenient features of this vape. The batteries of Aspire CF come with special stainless steel endpoints, carbon fiber coated tube, a metal button along with the presence of a revolutionary spring mechanism that provides better connection between the battery and the tank. Another convenient feature of this vape includes a rotary knob which can be turned to adjust the voltage.

Aspire CF Passthrough Battery, 900mAh

Product Instructions

Parameters

Length x Diameter: 108.5mm x 14.8mm

Capacity: 900mAh

Output Voltage:4.2V full power output

Only comes in Black

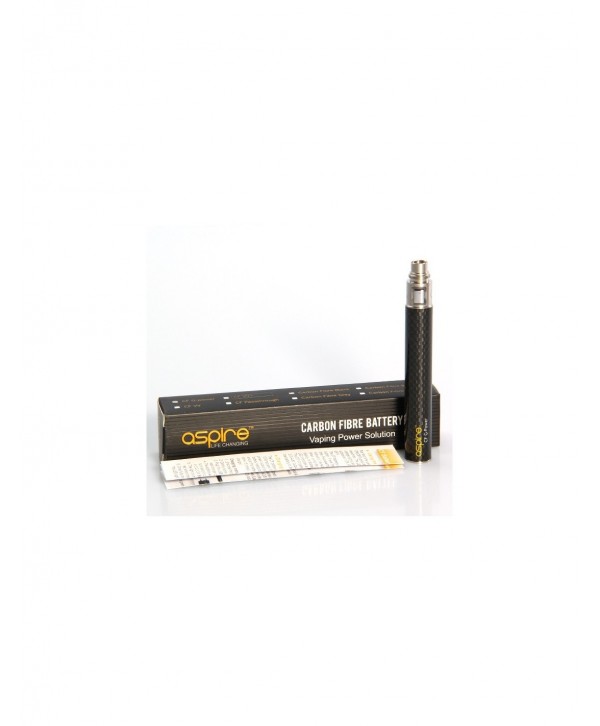

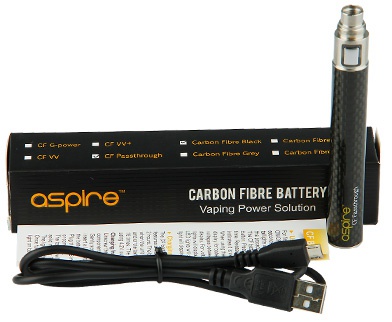

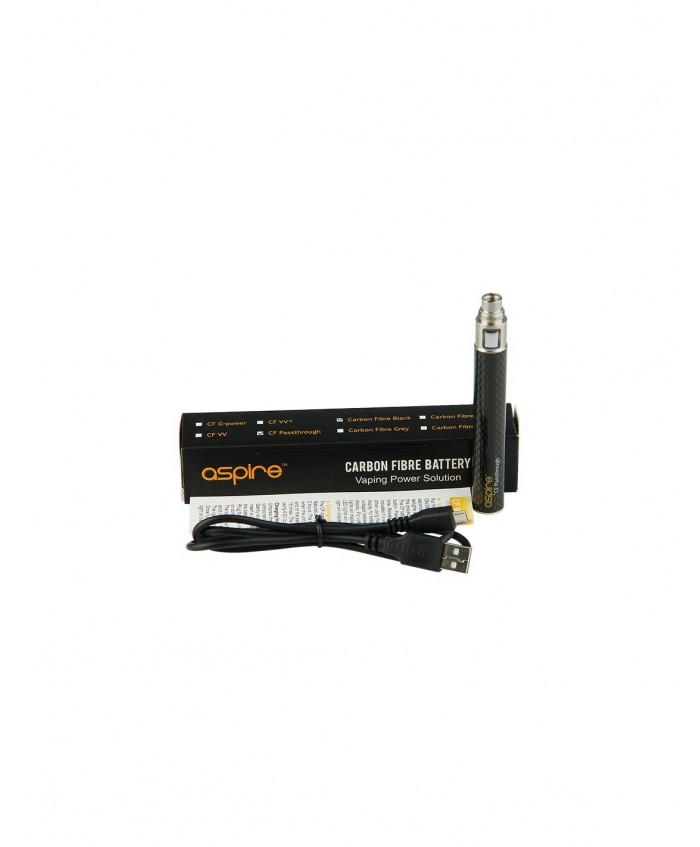

Aspire CF Passthrough Battery 900mAh contains

• 1x Aspire CF Passthrough Battery-900mAh
• 1x USB cable
• 1x User manual

Simple packing. Customary packing from the factory, the packing is subject to change without notice.

Detailed Instructions

Features

1.Stainless Steel Parts

2. Metal Button

3. Carbon Fiber Coated Tube

4. Spring Connector

5. High Quality Cell and Control Circuit

6. Perfect Inner Structure Design

7. USB port and 5 Indicator taillights

Operation Guide

Turn ON/OFF:Press button 5 times in succession in 2 seconds. The LED will blink 3 times, the button and the taillights will illuminate Blue when active and ON. Repeat this procedure to turn battery OFF.

Passthrough Function:You can take puffs while charging which is more convenient.

LED Light Indicator:Blue LED taillights will display for battery cell voltage:

For voltages greater than 4.0V: 5 lights.

3.8-4.0V: 4 lights.

3.6-3.8V: 3 lights.

3.4-3.6V: 2 lights.

3.2-3.4V: a single Blue LED light.

Low Battery Indication:The battery button indicator light blinks 15 times

Special Characteristic of CF Passthrough

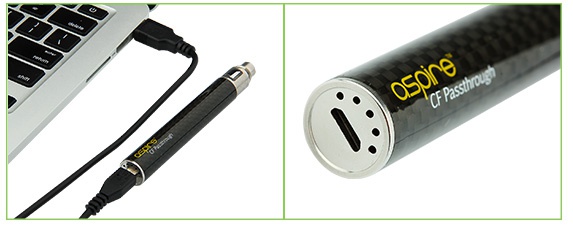

Charging: You can charge it with the USB cable (there is a bottom USB port on the battery), or charge it with USB charger.

Indicator lights: The Blue LED light located inside the button and 5 Blue taillights on the bottom of the battery indicate voltage level.

5-Click protection: Generally, the battery is shipped in the off position. In off position, it will not function even when pressing the button. To turn on battery, press manual button 5 times within 2 seconds. To turn off battery, press manual button 5 times within 2 second as well, the blue LED will flash! Â "5-click protection" can protect the battery from being activated when you do not want or do not use it. No more firing in your pocket!

Overdischarge Protection: When battery cell voltage is less than 3.2V (low battery), the atomizer will remain OFF, and the Orange LED light will blink 15 times.

Atomizer Short Circuit Protection: If heating coils are short-circuited while vaping, the LED lights  blink 3 times, and the battery will default to “sleep mode.â€

Charging Short Circuit Protection: If the charger is short-circuited while charging, the battery will default to OFF position, stop charging, and the LED lights will flash 6 times.

Charging Instructions:

1.Unscrew the battery from the vaping components.

2.Gently screw battery into the USB charger or insert a USB into the port on the bottom of the battery.

3.Plug the USB into the supplied wall charger or computer.

4.The battery will flash 3 times and then turn solid in color. The taillights will illuminate one by one.

5.The light on the USB charger will be red and the blue LED taillights stays on when charging.

6. Complete Battery Charge Time 2 hours. Once fully charged, the USB charger will display a green light

Order Tips

• Aspire CF Passthrough Battery 900mAh contains 510/eGo thread.
• There is CE mark on the battery.

Guarantee

Pls check Guarantee Policy. 6 months
