Joyetech Cuboid 150W TC Express Kit

About Joyetech Cuboid 150W TC Express Kit

Joyetech is offering you electronic cigarette and e-liquid products too. They bring in a ton of VG and PG flavors too. Everything is easy to carry, and the company releases a plethora of e-cig kits for your convenience like Atopack Penguin, eVic VT, Primo and AIO, as well as Cuboid, UNIMAX and many others.

150W Joyetech Cuboid TC Express Kit

Product Instructions

Parameters

Size: 42.0 x 28.0 x 91.5mm

Modes Available: VW/ VT-Ni/VT-Ti/ VT-SS316/ TCR Mode

Wattage: 1 - 150W

Resistance:

0.05 - 1.5ohm for VT Mode

0.1 - 3.5ohm for VW Mode

Temperature Range: 100 - 315℃/ 200 - 600F

CUBIOD comes with

• 1 x Joyetech Cuboid MOD
• 1 x Micro USB Cable
• 1 x User Manual & Warranty Card

Simple packing. Customary Packing from the factory, the packing is subject to change without notice.

Detailed Instructions

Features

Dual 18650 Battery Power System

Dual-battery Display

Customized TCR Function

V3.0 Upgradable Firmware

150W Maximum Output Wattage
Zinc Alloy and Wire Drawing Finish

Operation Guide

Power On/Off: put in two 18650 batteries then press fire button 5 times in quick succession to turn on/off the device. High-rate 18650 (≥25A) is recommended.

Vaping: adjust the wattage to what you want. Press fire button and inhale through the mouthpiece. Release the fire button and exhale.

Stealth Function: when the device is on, press fire button and left regulatory button simultaneously to shift between Stealth On and Stealth Off Modes.

Lock Function: when the device is on, press fire two regulatory buttons simultaneously to switch between Key Lock and Key Unlock function. Key Lock function can prevent accidental adjustment of device setting.

Switch the Display: press two regulatory buttons simultaneously when device is off to rotate display of the device.

Shift Between VW/ VT-Ni/ VT-Ti/ VT-SS316/ TCR Mode:

1. Press fire button 3 times to enter the menu, first row of 6 in the menu will flash to indicate you entering the menu.

2. Press regulatory button to switch among available modes. Press fire button or leave the display to flash 10 time to confirm the mode you choose and exit the menu.

3. Temp-SS316: Joyetech BF-SS316 atomizer head (0.5ohm/1.0ohm) is recommended under this mode.

4. TCR (M1, M2, M3): temperature coefficient of resistance, is a new vaping mode that ever applied with Joyetech Product. When mode indication is still flashing, press the left button to activate sub-menu items, which will flash when activated. Press the right button when flashing to choose modes among M1, M2 and M3. Then press fire button to confirm.

How to Set TCR

In power-off condition, press the fire button and the right regulator simultaneously for another 5s to enter TCR set menu:

1. Press right or left regulator to choose between TCR M1, M2, or M3. Then press fire button to confirm what you choose.

2. Press regulator to increase or decrease the parameter to your preference.

3. Long press the fire button or leave it about 10s to confirm the setting.

TCR Value Range of Cuboid

Material TCR Value Range Nickel 600 - 700 NiFe 300 - 400 Titanium 300 - 400 SS (303, 304, 316, 317) 80 - 200

4. Under VT mode, coil temperature can be adjusted by press right or left regulatory button. A momentary press of the regulatory button will increase/ decrease the temperature by increments of 5℃ or 10F.

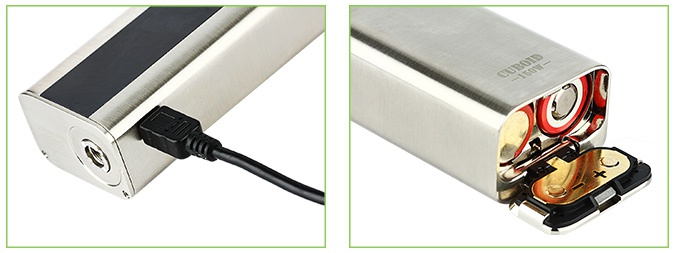

Charging & Upgrading

We kindly suggest you take out battery cells and charge the with a separate charger. The micro USB port is on the top of the left side. Connect it with a micro USB cable to charge or upgrade the device.

Order Tips

• It doesn't come wit liquids, you shall buy separately.
• It doesn't include a wall adapter.
• CE mark under the bottom of the MOD.
• It doesn't come with 18650 lithium battery, you shall buy separately.
• You can download certificates.

Guarantee

3 months for battery. Please check Guarantee Policy.

Note: We now need serial number to proceed after-sales service. Please kindly preserve the serial number of product if it's available.

Click download to get certificate: CE, ROHS.
