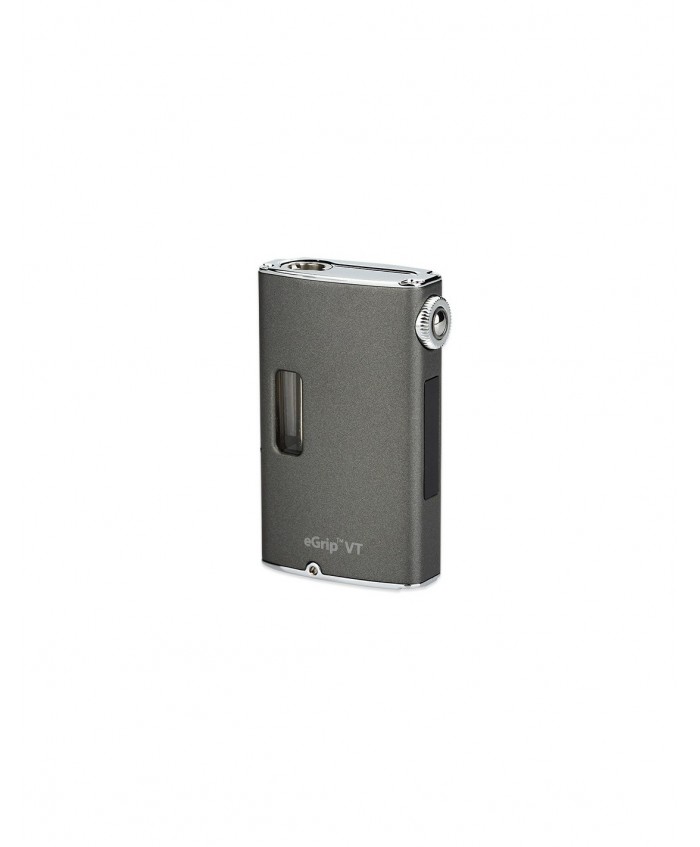

Joyetech eGrip OLED 30W VT MOD 1500mAh

About Joyetech eGrip OLED 30W VT MOD 1500mAh

Joyetech is offering you electronic cigarette and e-liquid products too. They bring in a ton of VG and PG flavors too. Everything is easy to carry, and the company releases a plethora of e-cig kits for your convenience like Atopack Penguin, eVic VT, Primo and AIO, as well as Cuboid, UNIMAX and many others.

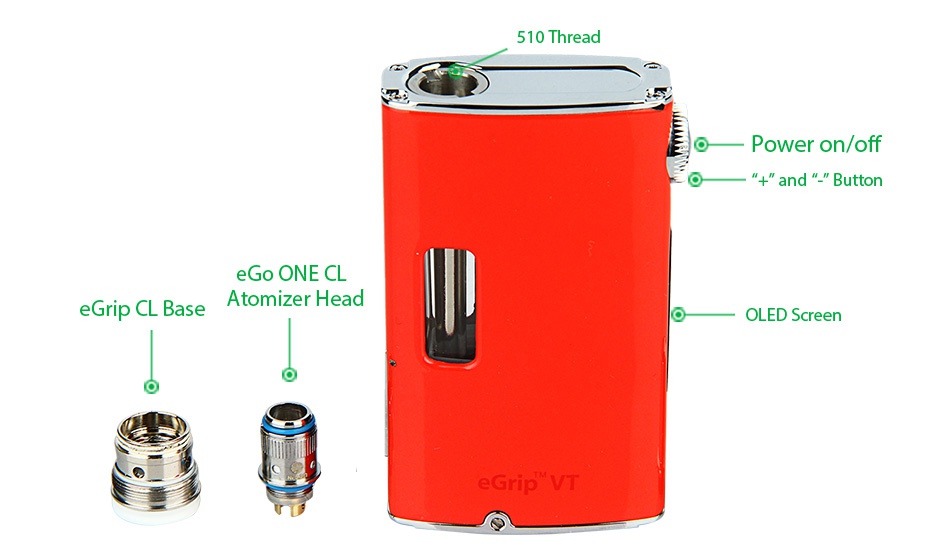

The built-in atomizer egrip is considered one of the first atomizer cigarettes that Joyetech has ever produced. The 360° regulation ring for adjusting wattage also comes with a transparent liquid window for tracking e juice. The e grip comes in several different formats with an OLED screen that measures watts as well as a version with simpler readouts. The variable temperature control system makes this the user-friendly device for custom vape.

30W Joyetech eGrip OLED VT MOD - 1500mAh

Product introduction

Parameters

Size: 46.4mm*20.4mm*76mm (without mouthpiece)
Battery Capacity: 1500mAh
Output Mode: VT-Ni/VT-Ti/VW Mode
E-juice Capacity: 3.6ml
Resistance Range:
0.2-1.0ohm for VT mode
0.4-3.5ohm for VW mode

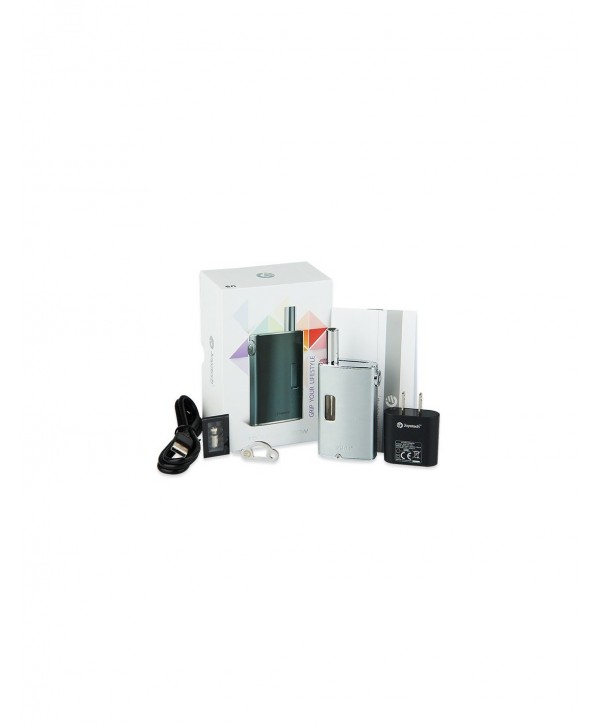

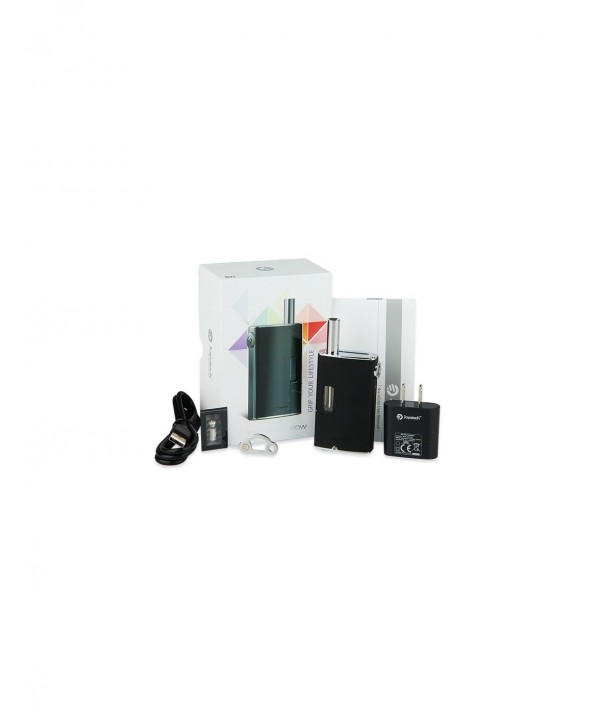

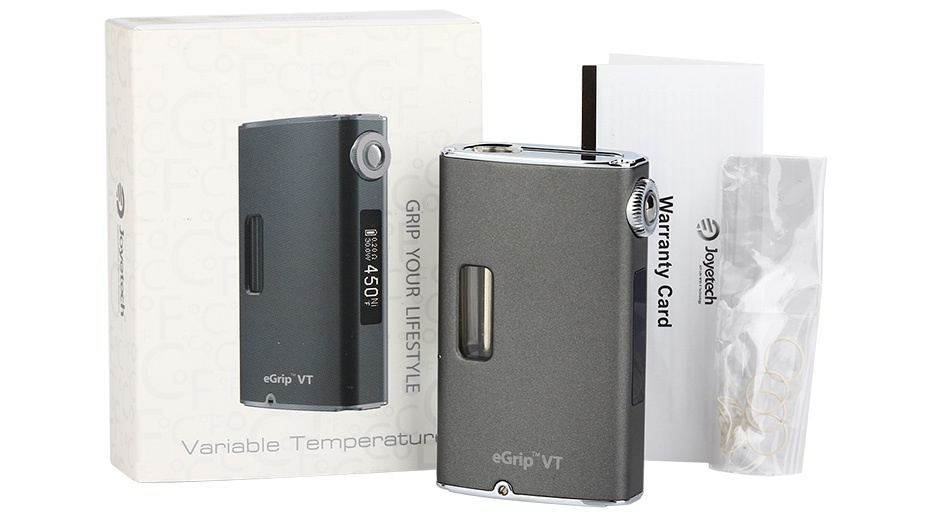

Joyetech eGrip OLED VT MOD comes with

• 1 x eGrip VT body(without mouthpiece)
• 1 x Manual & Warranty Card

Simple packing. Customary Packing from the factory, the packing is subject to change without notice.

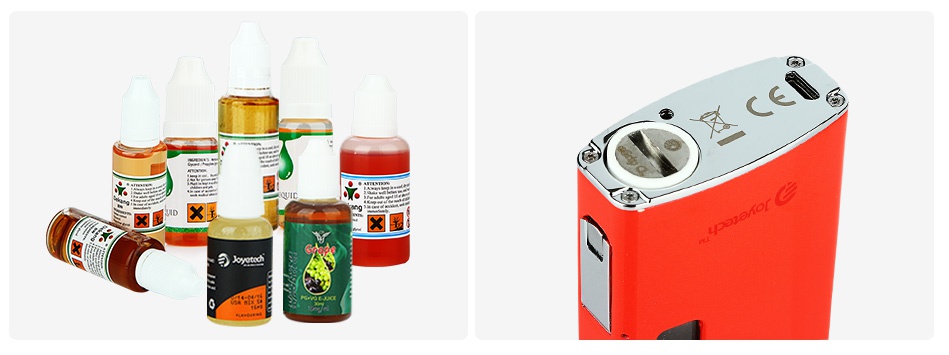

• eGrip OLED VT MOD doesn't come with e-liquids. You shall purchase e-liquids separately.
• There is CE mark on battery end.

Features

Variable Temperature Control
Supporting VT-Ti / VT-Ni/ VW mode
360-degree regulation ring

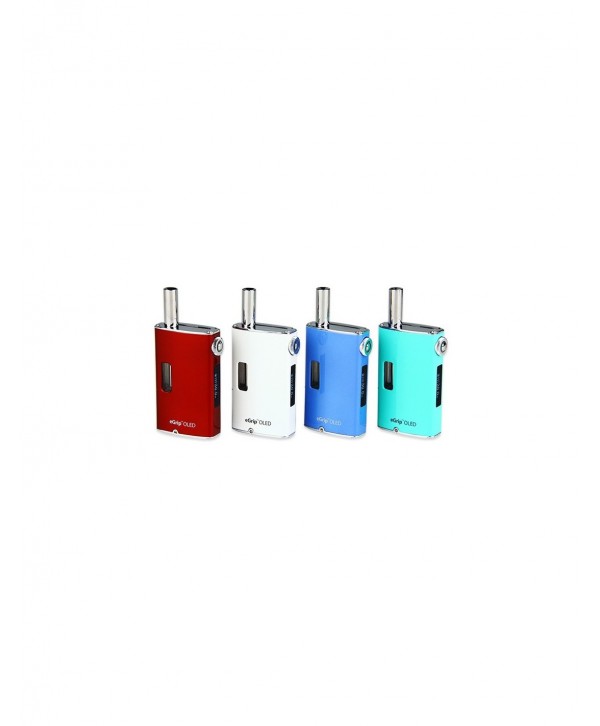

Multiple colors
Easy to clean

1. Power on/off:
Press the fire button 5 times in quick succession to turn the device on.
In the same way, the device will be powered off after 5 presses.

2. Vaping:
Hold the fire button and inhale through the mouthpiece. Release the Fire button and exhale.

3. Shift between VT-Ni/VT-Ti/VW Modes:
Press the fire button for three times to shift between VT-Ni/VT-Ti/VW Modes when the battery is on.
(1)under VW mode, it presents: battery life, ohm, voltage and wattage.
(2)under VT mode, it presents: battery life, ohm, wattage, temperature and mode (Ni/Ti).

4. Adjust the wattage/temperature[1]:
Under VW mode, rotate the ring around the button clockwise or counterclockwise to increase or decrease the wattage (5W-30W); under VT mode, rotate the ring around the button clockwise or counterclockwise to increase or decrease the temperature (100-315℃/200-600F).
Rotate the ring faster clockwise or counterclockwise for continuous three grades, the device automatically increase or decrease 0.1W/5℃(10F) numerically.

5. Regulation of air-inlet[2]:
Spin the adjustment screw on the side of the button. Counterclockwise rotation will loosen the screw. The looser the screw is, the larger the air inlet is.

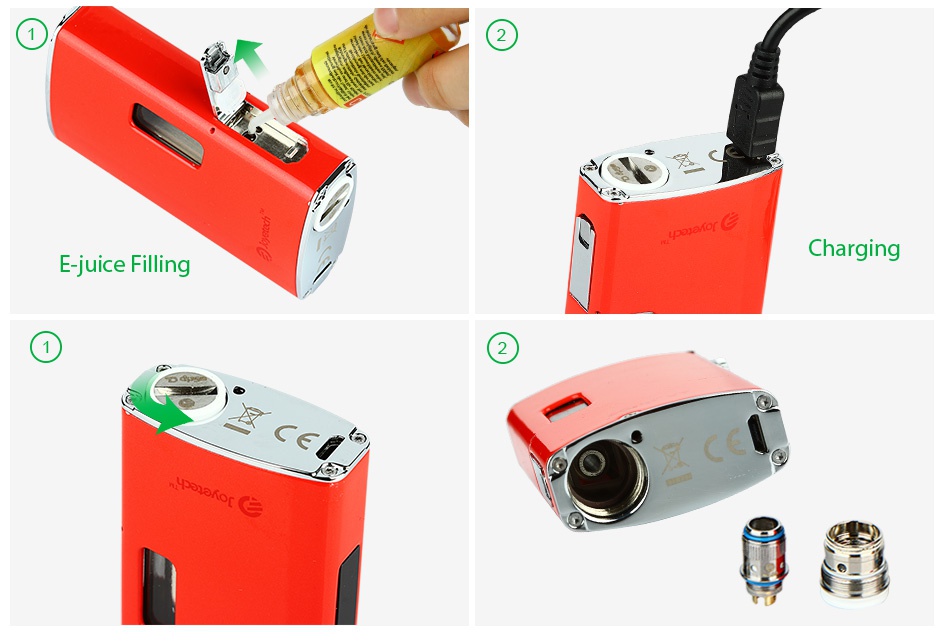

6. Atomizer head replacement[3]:
Unscrew the cap on the bottom with the tiny tool in the box (or just a coin), you'll see the atomizer head located right on the base. Then replace the head with a new one.

7. e-Juice Filling[4]:
Push up the lid on the side of the body, then slowly refill the liquid into the hole. (Note: Don't forget to lock the cap after finishing it.)

8. Vent Pipe Cleaning:
The vent pipe of eGrip VT is detachable. Take off the mouthpiece then use the tiny tool in the box (or just a coin) to unscrew the vent pipe from the top so as to clean it individually.

9. Charging:

Plug into the charging port at the bottom. It usually takes 2.5 hours to fully charge the battery via 1A wall adapter.
Indications:
1.Screen: The OLED screen presents watts, ohms, temperature, battery life and timing while vaping.
2.No Atomizer Alert: When the coil is not installed properly, the screen will appear "No Atomizer".
3.New Coil Alarm: When installing a new coil whose resistance is larger than the previous one to some degree, resetting the "basic resistance" (resistance at room temperature) shall be required.
After fitting a new coil, press the fire button while the atomizer base is removed to initiate a reset. After you reinstall the atomizer base with a new head, the screen will appear "new coil up, same down". Rotate the regulation ring clockwise to confirm that a new coil has been fitted.
Should you see this message for any other reason, especially when reinstalling the same coil that is still warm after use. If so, rotate the regulation ring counterclockwise so that the 'basic resistance" won't be reset.
4.Device Too Hot Alert: When the device's inner temperature passes over 70℃, the output will shut off automatically and the screen will appear "Device Too Hot" for 5 seconds. After then, it switches back to normal.
5.Temperature Protection: Under VT mode, if the coil's actual temperature reaches to the set temperature, the device will show "Temp Protection".
6.Over 10s Protection: If you keep pressing the fire button for more than 10 seconds, the screen will appear "Over 10S".
7.Atomizer Short-circuit Protection: When atomizer short-circuit occurs, the screen will appear "Atomizer Short".
8.Atomizer Low Alert: When the atomizer resistance is lower than 0.4ohm under VW mode or lower than 0.2ohm under VT mode, "Atomizer Low" will appear on the screen.
9.Low-voltage Protection: When the battery voltage is lower than 3.3V, the screen will appear "Battery Low" and "Lock". Thus the battery is locked. Recharging to unlock the battery.

Note:
1.Under VT mode, please install the temperature control coils at room temperature ;
2.Only use temperature control coils under VT mode. Damages will be caused when temperature control coils are accidentally used under VW mode.
3.VT mode only supports a maximum of 1.0ohm. It will automatically switch to VW mode when the coil is larger than 1.0ohm or using a normal coil under VT mode.

Guarantee

DOA (Dead on Arrival) ONLY!

Note: We now need serial number to proceed after-sales service. Please kindly preserve the serial number of product if it's available.
