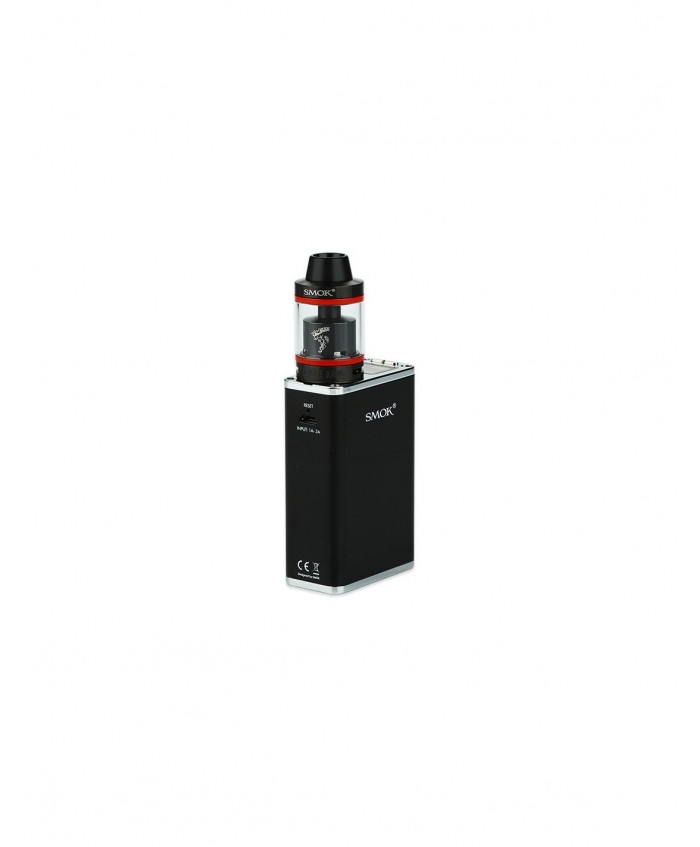

SMOK Micro One 150 TC Starter Kit 1900mAh

About SMOK Micro One 150 TC Starter Kit 1900mAh

SMOK is a vaping company, which was established in 2010 and is based in Shenzen that has taken the vaping world by storm. This company is known for their innovation, resulting in the first atomizer having dual coils. The company is highly regarded as being the most advanced in the industry, and is known for their R&D team, which is meticulous in coming up with new advances.

Micro R80 and Micro One R150 are the two models which are available in the SMOK Micro series. The R80 is a device that has a 4000mAh battery installed inside it. It is a type of TC MOD and has also made use of a Micro TFV4 tank. The R150 is an upgraded version of the R80 and has a maximum power output of 150W and a Minos sub tank installed inside it. Temperature control with coils supporting modes like SS/Ti/Ni is features of both the models, along with the availability of a number of other protections.

SMOK Micro One 150 TC Starter Kit

Product Instructions

Parameters

R150 TC MOD

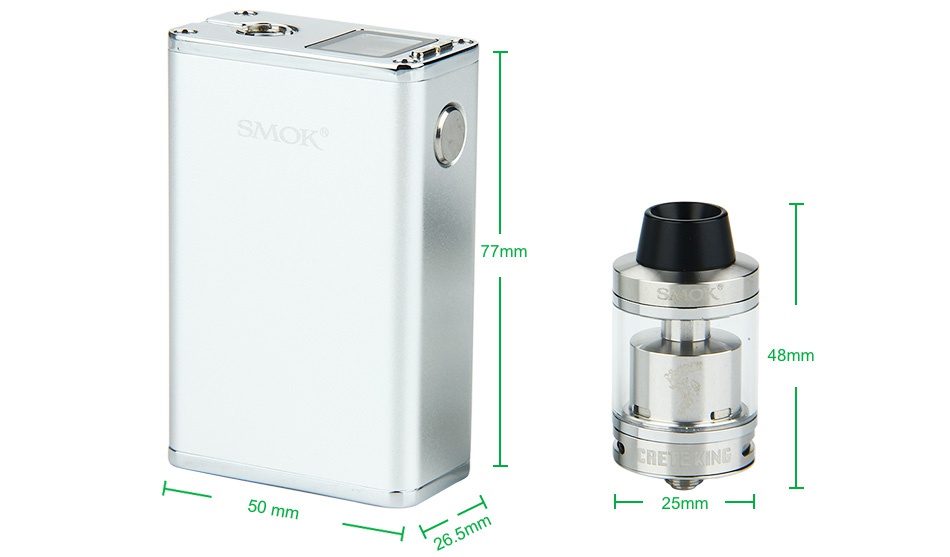

Size: 77 x 50 x 26.5 mm
Battery Capacity: 1900mAh
Voltage: 0.35V - 8.00V
Wattage Range: 6W - 150W
Temp Range: 200F -600F/ 100°C -315°C
Resistance Range: 0.06ohm - 3.0ohm (TC mode); 0.1ohm - 3ohm (VW mode)
Material: Aluminum Alloy and Zinc Alloy

Minos Sub tank

Size: 25 x 48mm
Capacity: 4ml
Material: Glass and Stainless Steel
Thread: 510

SMOK Micro One 150 TC Starter Kit 1900mAh contains

• 1 x R150 TC Box Mod (150W)
• 1 x Minos Sub tank (25mm)
• 1 x 0.3ohm Q2 core (pre-installed)
• 1 x Minos M2 Deck
• 1 x replacement glass tube
• 1 x USB charging/Upgrading cable
• 1 x User Manual
• Spare Parts

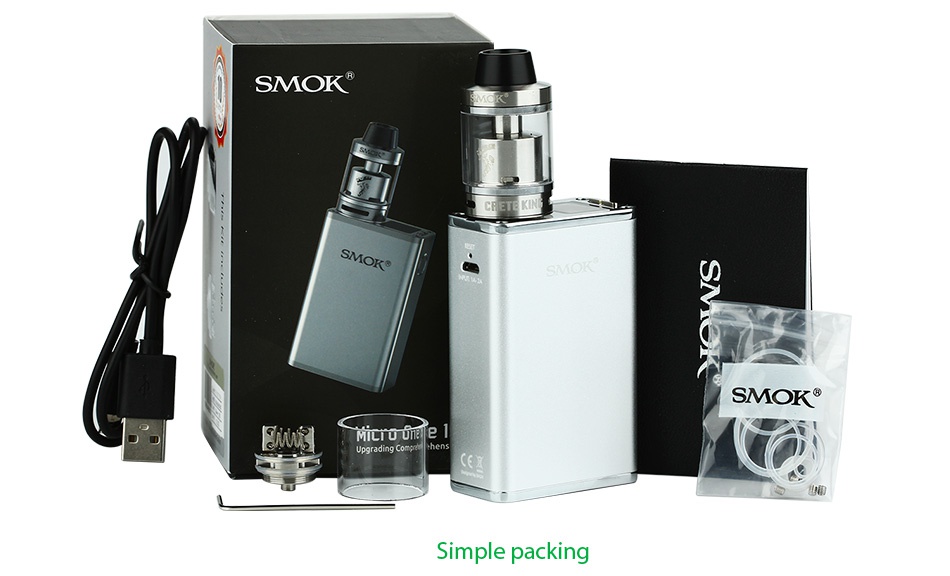

Simple packing. Customary packing from the factory, the packing is subject to change without notice.

Features

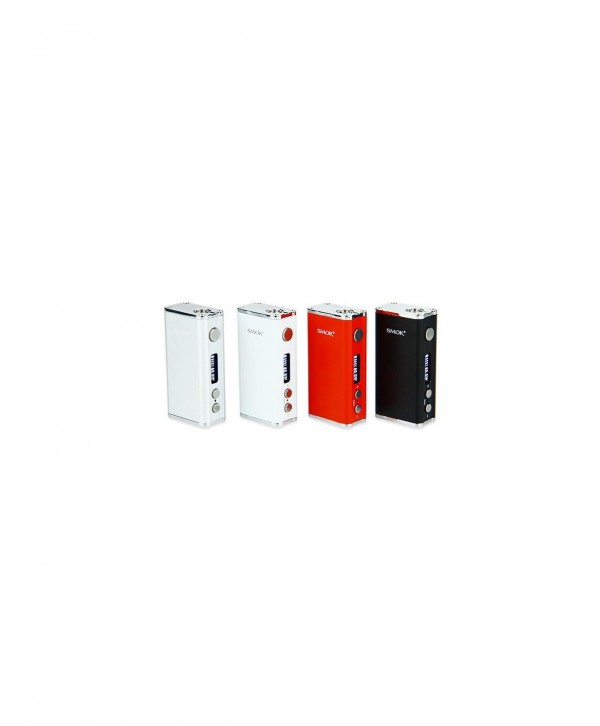

Four eye catching colors
Compact size

Structural design
Adjustable initial resistance
Support SS/Ni200/Ti wire
Bottom adjustable airflow system

510 RDA drip tip
Top refill system

Big M2 build deck for RTA option

Multiple protections

• Intelligent Atomizer Recognition
• Puff monitoring system
• 12 seconds cut-off
• Short circuit protection
• Over-heating protection
• Low battery warning

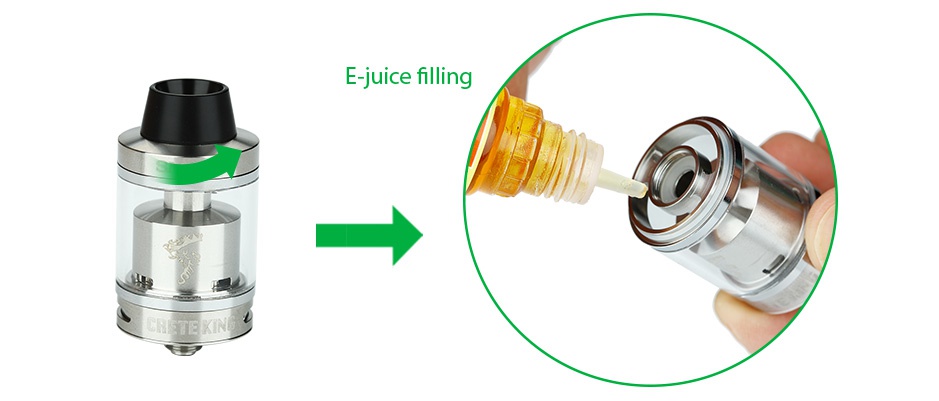

E-juice filling: Screw off the drip tip and top cap, then fill juice through 2 slots, and close the cap.

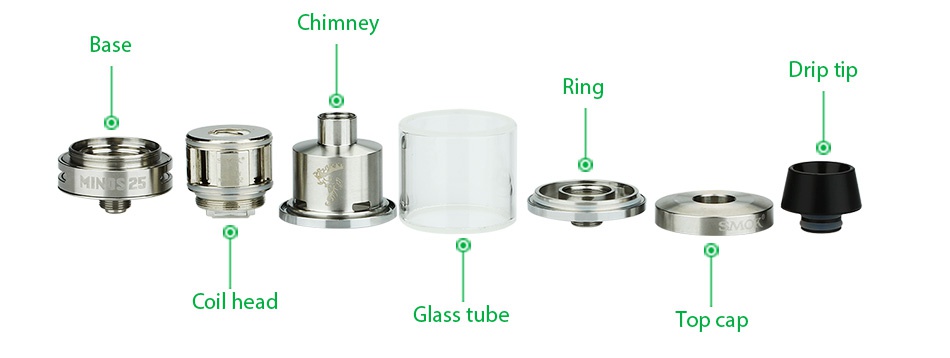

How to replace

unscrew the atomizer base from the atomizer, then the atomizer head off the base, replace the new head to the base and screw them back onto the tank tube.

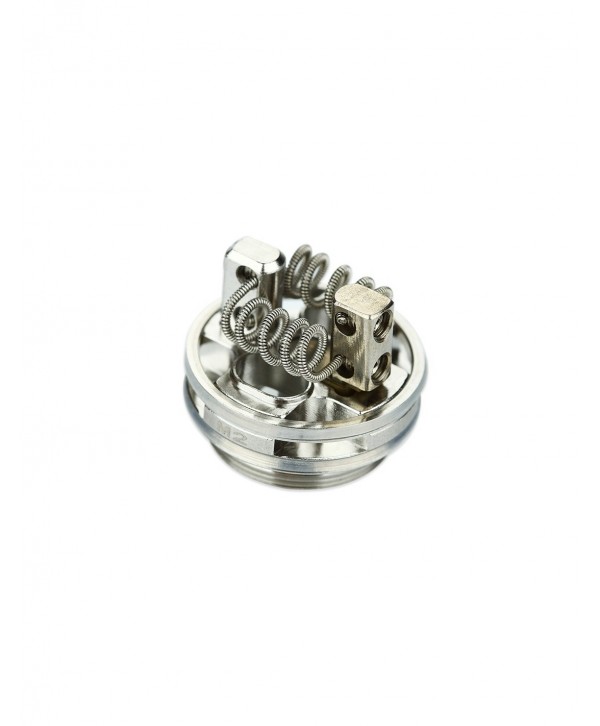

How to build the RTA(M2)

1. Before starting make sure your hands are clean.
2. Taking the Minos-RTA M2 deck apart.
3. Installing the pre-wrapped coil. Insert one end of your coil into the up-side screw, and the other end into the down-side screw.
4. Positioning and cutting the exceeding ends of wire off. Make sure the coil is fixed and lined up with the air hole, and also make sure the coil is NOT touching the deck. Then cut the exceeding ends of wire off.
5. Cutting a strip of cotton and make sure it's just larger than the coil you built.
6. Inserting the cotton, and placing it in the middle.
7. Cutting the wick at an angle and make sure it's not too short and not too long.

8. Wet the coil with your e-liquid and adjust the wick.

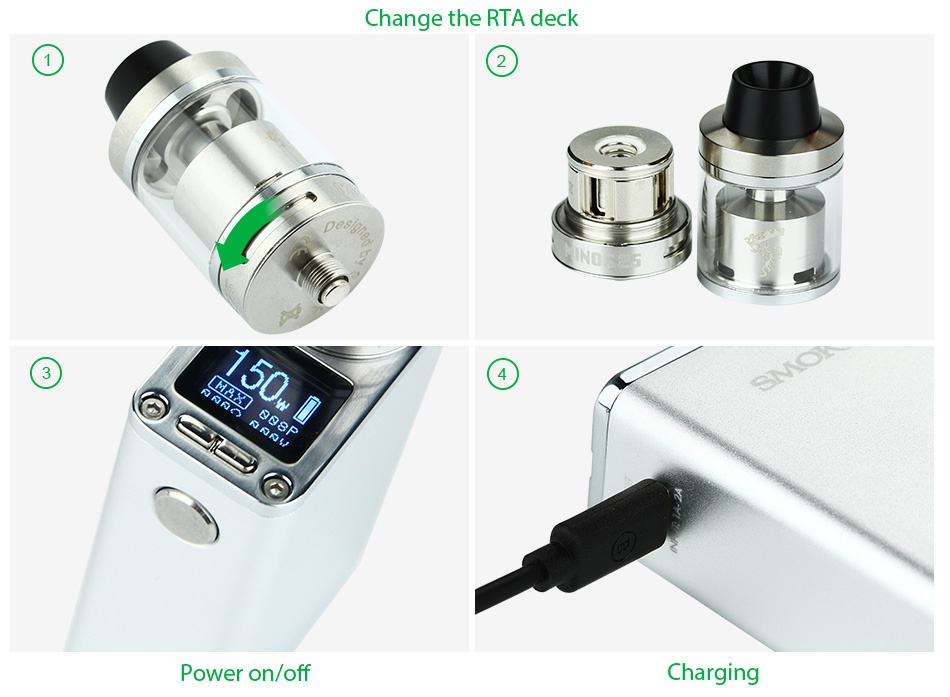

Power on/off:
Press the Power Button 5 times in quick succession to turn the device on. When the device is locked, hold the Power Button for 5s.
When the device is unlocked: by pressing Power Button 5 times to exit the locked mode. Press the Power Button and - button simultaneously to switch between "WATT MODE", "TEMP MODE"and "MEMORY MODE". Press the Power Button and + button simultaneously to switch between "MIN", "SOFT", "NORM", "HARD" and "MAX" draw effects. Press + button and - button simultaneously to switch between "TURN ON" and "TURN OFF". When the device is locked: Press + button and - button simultaneously to show daily vaping time and puff numbers.

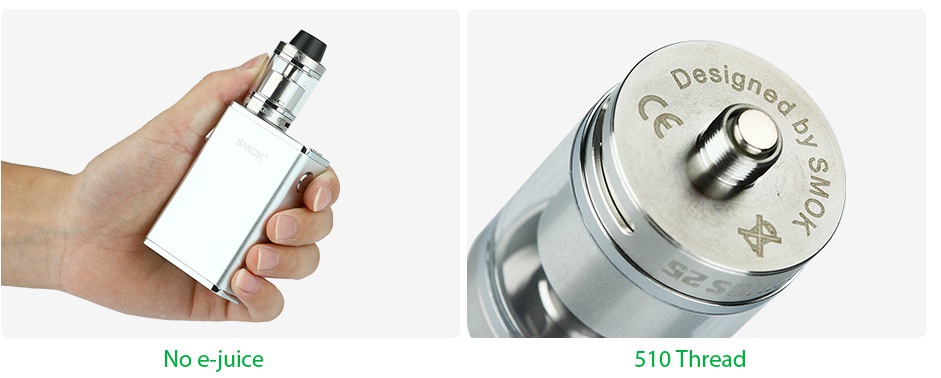

• No e-juice. You shall purchase it separately.

Guarantee

6 months for R150 TC Mod. Please check guarantee policy.
