UD BALROG 70W TC Kit

About UD BALROG 70W TC Kit

UD vapes is a company that believes in streamlining their designs and creating lines that vape enthusiasts all across the board can enjoy. Their motto is "unification of design," and they focus not only on bringing high quality designs to the market but also creating high quality ones as well. The company specializes in RBA tanks and are best known for their Goblin Mini and Zephyrus tanks. Because of their reliability and quality, they have long been accepted by DIY vapers far and wide.

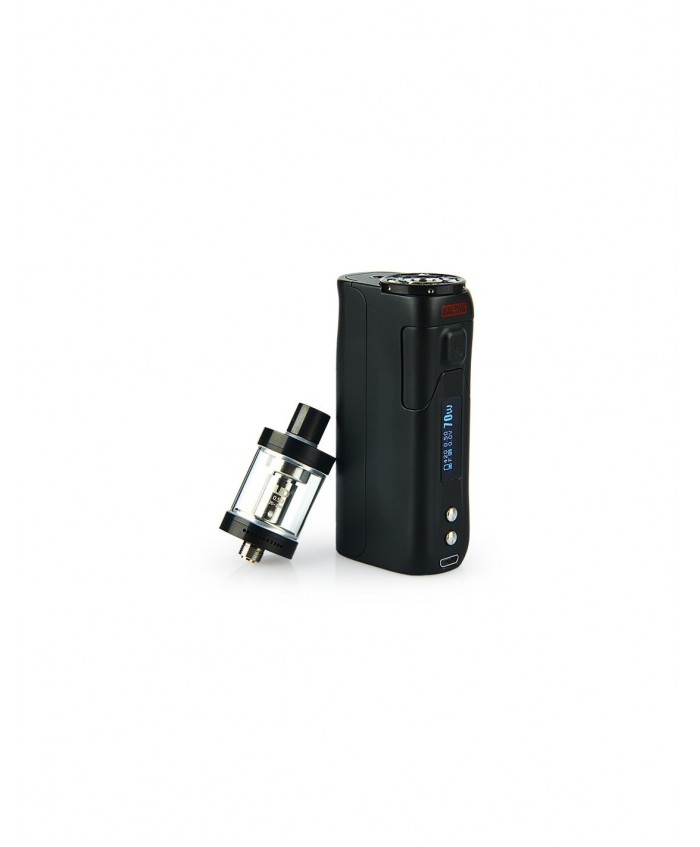

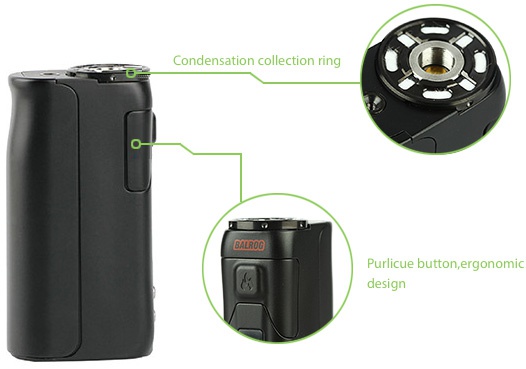

Start vaping with your new box mod instantly with this 70W UD BALROG TC Kit. The kit comes with both the box mod itself and the tank to get you stated, both of which are made out of durable, high quality stainless steel. This box mod is able to vape between 5 and 70 watts depending on your preferences. Vape it between the temperatures of 200 and 600 degrees Fahrenheit if you want to get more specific. The BALROG vape features a condensation collection ring that helps to prevent leaks and messes and uses a single 18650 battery, which is not included.

70W UD BALROG TC Kit W/O Battery

Product introduction

Parameters

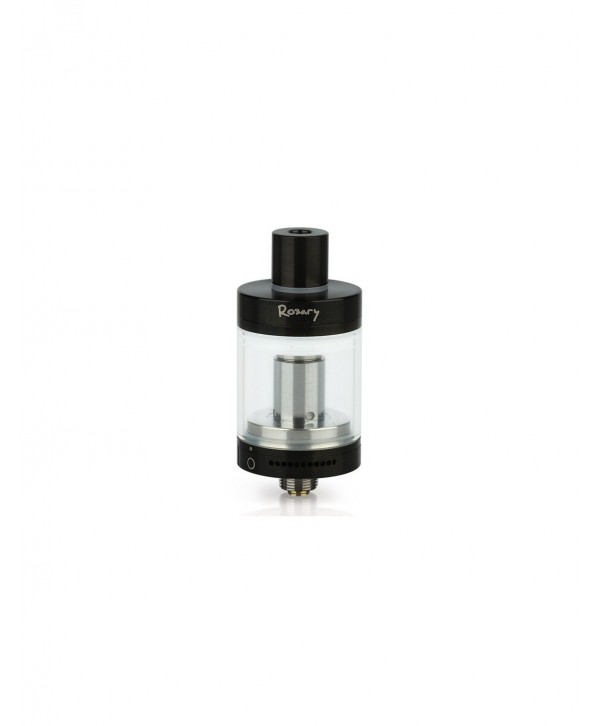

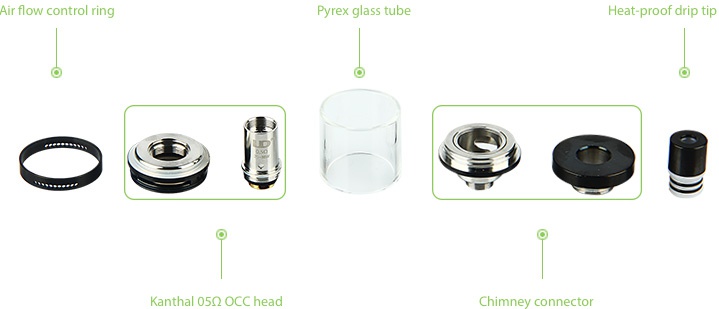

BALROG tank

Capacity: 3ml

Material: Stainless Steel, Zinc Alloy & brass

Resistance & Working Wattage:

1.8ohm: suggested 15 - 22W

0.5ohm: suggested 20 - 38W

Ni200 0.15ohm: suggested 200 - 450F

70W BALROG TC MOD

Size: 78 x 38 x 23mm
Thread: 510 Thread
Max Ouput Voltage: 8.5V
Max Output Current: 26A
Wattage: 5W - 70W
Temperature Range: 200 - 600F
Resistance: 0.15ohm - 3.0ohm
Suggested Battery: 3.7V 20A discharge 18650 battery (NOT included)

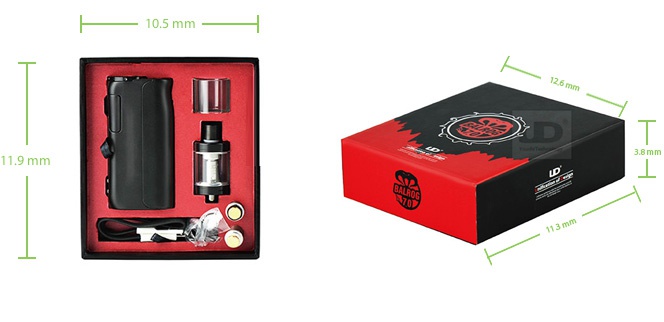

UD BALROG 70W TC Kit contains

• 1 x 70W BALROG TC MOD
• 1 x BALROG Tank(0.5ohm coil pre-installed)
• 1 x kanthal 1.8ohm coil
• 1 x Ni200 0.15ohm coil
• 1 x USB cable
• 1 x MOD strap
• 1 x replacement Pyrex glass tube
• 1 x accessory kit
• 1 x User Manual

Simple packing. Customary Packing from the factory, the packing is subject to change without notice.

Detailed Instructions

1. Super Mini Starter Kit

2. Single 18650 battery

3. 200 - 600F TC Range

4. Screen reversal function

5. Output Short Circuit Protection

6. Overheating Protection

7. Voltage protection

8. VW and TC Modes

9. Airflow Control

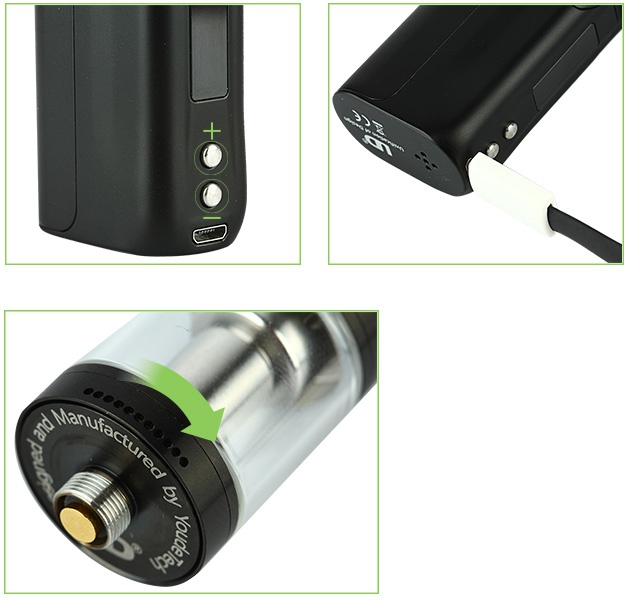

Operation Guide

Refilling: Unscrew the stainless top cap; refilling from the top hole; screw well after refilling finished.

Power On/Off: press fire button 5 times in succession to turn on/off the device.

Switch Modes: Under stand by mode, consecutively press the power button 3 times to enter menu mode; between VW/TC modes; "+" or "-" means switch button; power button means enter and confirm.

Adjust Wattage/Temp: press "+" or "-" to increase or decrease the wattage/temp.

Adjust Temperature Sensitivity: Follow "figure 1" to enter into "SENSITIVITY" setting, 1 means the most sensitive.

Screen reversal: Follow "figure 1" for instruction, enter into "screen" to adjust. (right/left/stealth) Press power button 3 times to cancel stealth.

Initial Resistance Checking: press both the "+" and "-" to check atomizer resistance.

Lock/Unlock: press power button and "-" simultaneously to lock/unlock the device.

Battery Installation: open the battery cap and place one battery into the device.

Change Battery: Please change battery when you see "power too weak" alarm.

Order Tips

• 510 Threaded
• It doesn't come with liquids, you shall buy separately.
• It doesn't come with 18650 batteries, which you shall buy separately

Guarantee

Please check Guarantee Policy.
Guarantee period: 3 months for the MOD.
