VapeOnly vAres 20W VW MOD 1600mAh

About VapeOnly vAres 20W VW MOD 1600mAh

VapeOnly is known as a high-end electronic cigarette brand that produces luxurious, high-powered and efficient mods for every vape enthusiast, no matter what their preferred styles are. This brand is constantly updating their styles and selections, determined to never let their customers down. Their newest products, including the VapeOnly vPipe kit, the VPulse battery and their unique cartomizers, can all be found here as well as a vast selection of other VapeOnly products for your consideration, all at a low prices.

With this product you get to have a very good vaping battery with 1600 mAh, 20W as output, OLED and a 360 adjustable button. You also get variable voltage and wattage.

20W VapeOnly vAres VV/VW Mod Battery

Video Review

Product Instructions

Parameters

Battery size (length x diameter): 126 x18mm

Working wattage range: 5.0W - 20.0W
Working voltage range: 3.5V - 7.0V

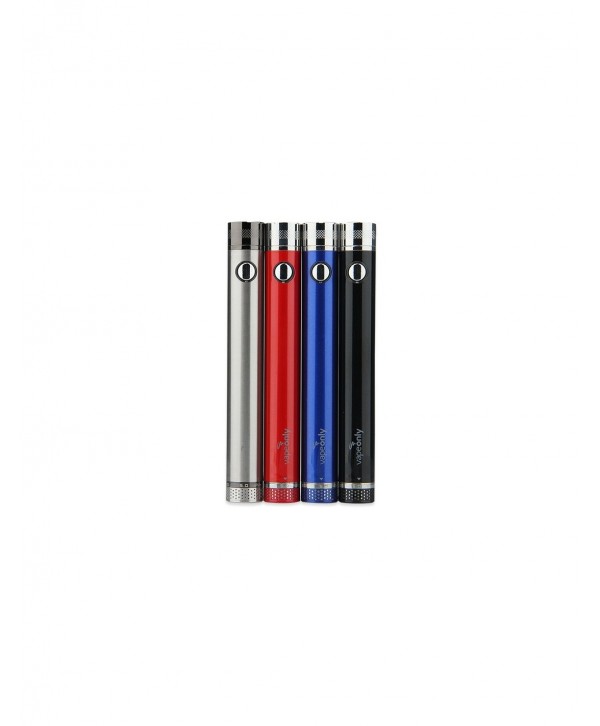

Colors: Silver and Light Gun

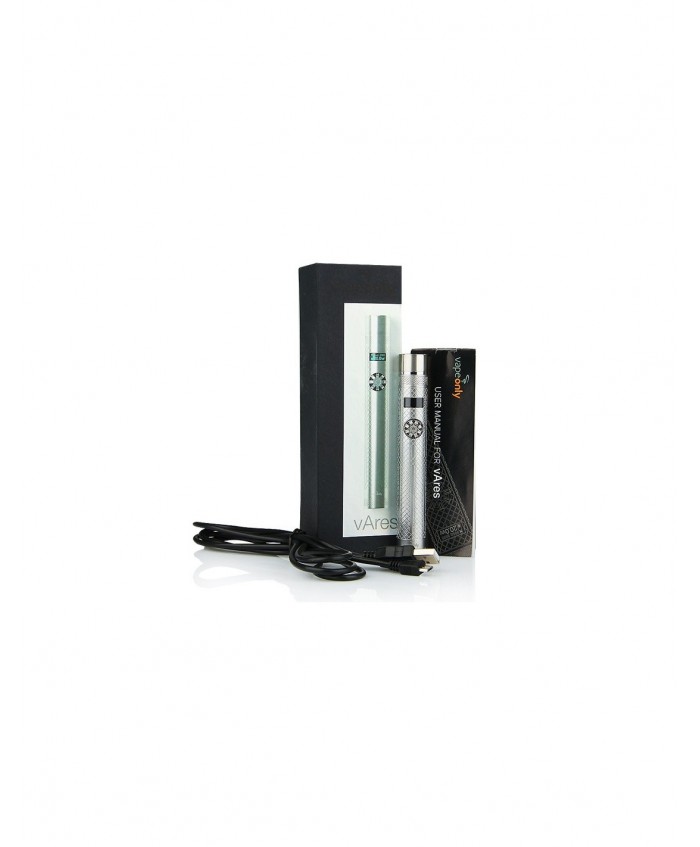

VapeOnly vAres 20W VW MOD 1600mAh contains

• 1 x 20W VapeOnly VAres VV/VW Mod Battery - 1600mAh
• 1 x Decorative Ring
• 1 x USB cable
• 1 x User manual

Simple packing. Customary Packing from the factory, the packing is subject to change without notice.

Detailed Instructions

Features

1. Variable voltage and wattage
2. 360° adjustable button
3. Perfectly embedded OLED display
4. 1600mAh large capacity
5. 20W max current

Operation Guide

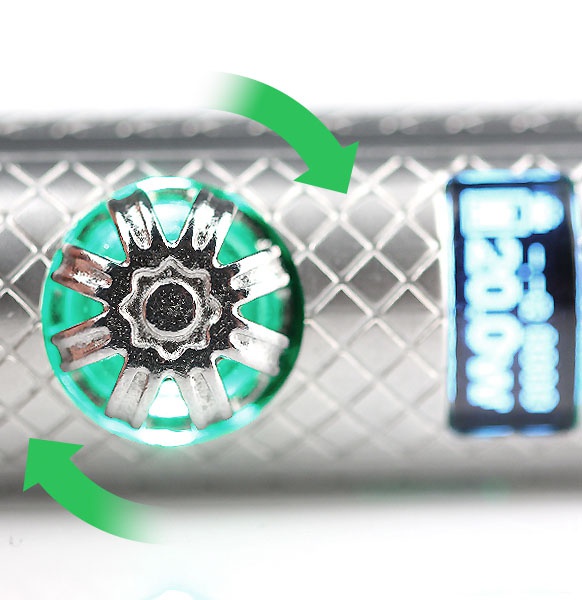

Multi-functional button: The button can be pressed and twisted. You can press it to turn on/off, to switch mode and vape. And you can rotate the button to adjust voltage and wattage, which makes the operation much more comfortable and convenient.

Power on and off: Press the button for 5 times in quick succession, the battery will be on for using and OLED screen is enabled. In the same way, vAres will be powered off after 5 presses.

VV mode (3.5V - 7.0V): In this mode, voltage output can be adjusted by rotating the button clockwise or counterclockwise, 0.1V/increment.

VW mode (2W - 30W): In this mode, wattage output can be adjusted by rotating the button clockwise or counterclockwise, 0.5W/increment. For resistance range of 2.5-5.0ohm, the max wattage will be smaller than 20W.

Ohm Meter Function: The device will detect and show the resistance of the loaded atomizer when the button is pressed in power-on status.

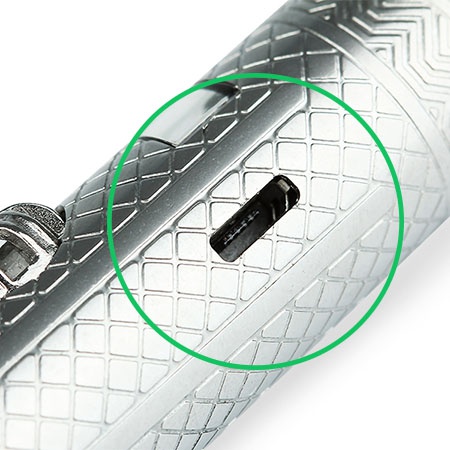

Micro USB charging port (USB Passthrough Function): With the Micro-USB cable connected to a standard USB output port, it can work as a USB pass-through device for simultaneous vaping and charging.

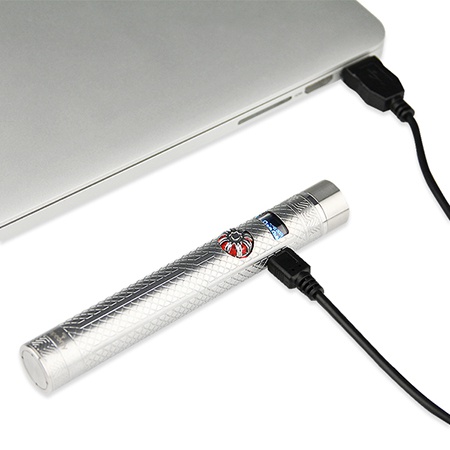

Charging: Connect the battery through a Micro-USB cable to a USB output port to charge it. Once the vAres is connected for charging, the button LED blinks red 3 times and the OLED screen being activated. The battery icon animation on the OLED screen shows the charging status. Full-frame battery icon indicates the battery is fully charged.

10s cutoff time: When you keep pressing the button for over 10 seconds, the output will shut off and the OLED screen will show "Over 10s Protection".

Atomizer Resistance Detection: When the atomizer resistance is lower than 0.5ohm, the OLED screen will display "Atomizer Low".

Low-voltage protection: When the voltage is below 3.3v, the battery will be locked and refuse to be restarted.

Short-circuit protection: In the event of a short circuit(including short circuit while working and charging), the button LED will flash 8 times and the device will enter protection mode.

Order Tips

• It's only a battery kit, doesn't come with cartomizers/tanks.
• There is CE mark on the battery.
