VOOPOO Black Drag Resin 157W with Uwell Valyrian TC Kit

About VOOPOO Black Drag Resin 157W with Uwell Valyrian TC Kit

The inauguration of VOOPOO was in 2014. The primary work of VOOPO is the production of electronic cigarette, and this work started after getting the ownership of the U.S. brand. The name of the brand was WOODYVAPES in 2017, and now the VOOP has the global sale, and it is a well-reputed brand. The motto and aim of VOOPOO are to serve millions of electronic cigarette users on this Earth. There is a continuous increase in the technology trends in the company, and that is the reason for the international fame of the VOOPO. Thus, it is the brand which is known for its technology and techniques. VOOPO is very conscious for the craftsmanship. The company also aims to get more advancements in the scientific trends and techniques. There is advancement like fast ignition so that the electronic cigarette is now more safe and secure.

With its beautiful design and excellent functionality, the VOOPOO DRAG is everything a modern vaper could need. This box mod features a firing speed that breaks all records, coming to life in only .025 seconds. The unit measures 90 millimeters by 54 millimeters by 24 millimeters in size and is made from hard-wearing zinc alloy material. The vape has an easy-to-remove door for you to change the two 18650 batteries inside with ease. The VOOPOO DRAG runs anywhere between 5 and 157 watts to give you control over the heat level with which you like to vape.

Specification

Parameters

Drag MOD

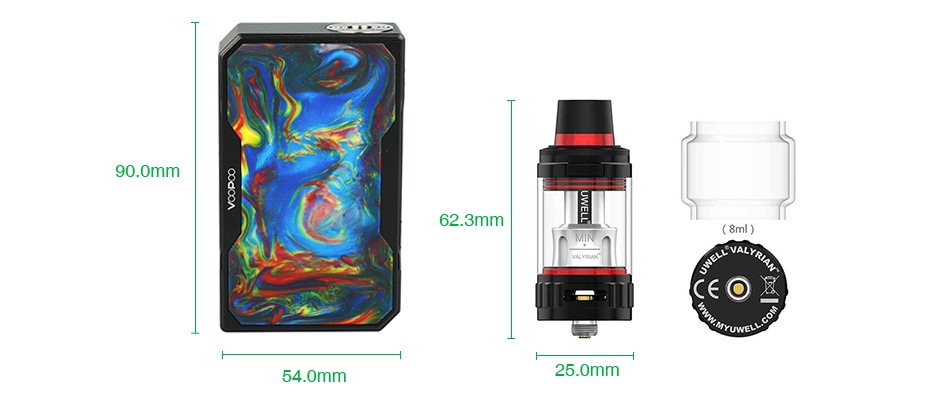

Size: 90 x 54 x 24mm
Chip: US GENE.FAN chip
Working Voltage: 6.4-8.5V
Working Current: 1-40A
Output Voltage Range: 0-7.5V
Output Current Range: 0-40A
Resistance range: 0.05-3.0 (VW)/0.05-1.5 (TC)
Output Power: 5-157W
Temperature Range:200-600°F/100-315°C

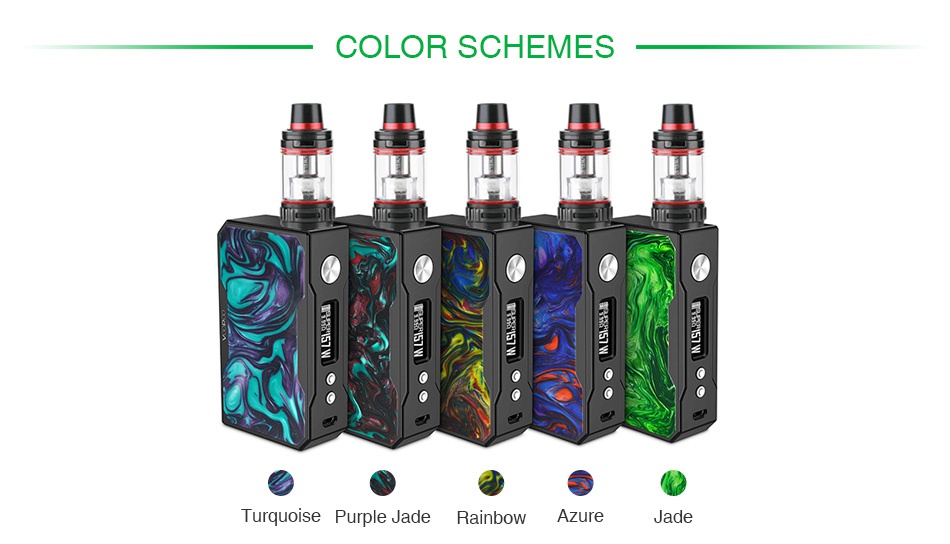

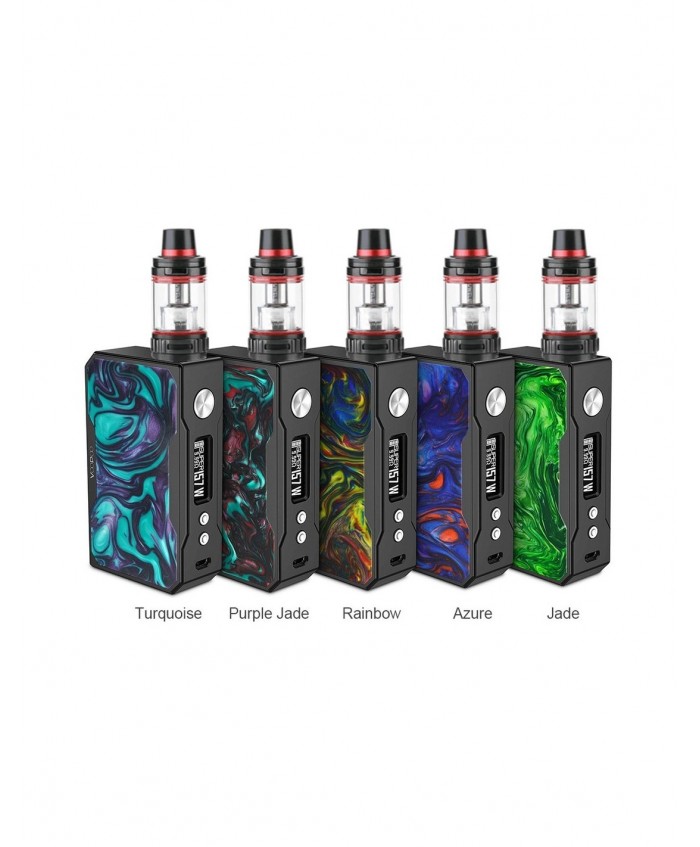

Color: Azure/Jade/Purple Jade/Rainbow/Turquoise

Uwell Valyrian Tank
Size: 25 x 62.3mm
Capacity: 5ml(8ml glass tube need to buy separately)
Resistance: 0.15ohm
Material: Stainless Steel, Copper, Pyrex Glass

Feature

Black zinc alloy frame with colorful resin panel
The fastest firing time - 0.025s
Super US Gene.Fan chip with firmware upgrade
Max 157W output power with innovative super mode
3 different types of inner coil pins for custom airflow and flavor
Convenient flip top filling design with heat-insulated top cap
Triple adjustable bottom airflow control

Operation Guide

Power on/off: Press the fire button 5 times in quick succession to turn the device on and off.

Mode Switch: Press the fire button 3 times quickly, the four interfaces can be switched orderly under normal startup condition. Constant power and temperature control SS/Ni/Ti.

Temperature Adjustment: When the temperature was set to 100℃, keep on pressing the down button, temperature will turn to 600F. When the temperature was set to 200°F, keep on pressing the down button, temperature will turn to 315℃. Quickly press the fire button 4 times can get into wattage adjust interface. Then you will see the letter "W" is flashing. The adjustable wattage is 5W to 80W.

Function Menu: Press uo and down buttons simultaneously for 1.5 seconds, enter the function menu interface. Press up button or down button simultaneously to choose th function. Press the fire button to make confirmation and go to next step.

Customization Mode: Press up and down buttons simultaneously for 1.5 seconds, the device will go to the function menu interface. Press up and down button to choose the Customization Mode and press fire button to go into Customization Mode interface. Under Customization Mode, press fire button 3 times continuously, 4 kinds of Customization Mode can be switched sequentially: Stable Power Mode, Temperature Control Mode:TC-SS316/TC-Ni200/TC-Ti.

Sleep Mode: If there is no operation for 30 seconds, screen will turn off. No operation for 30 minutes after the screen off, the device will enter sleep mode.

Packing

VOOPOO Black Drag Resin 157W with Uwell Valyrian TC Kit contains

• 1x VOOPOO DRAG MOD (no cell)
• 1x Uwell Valyrian Tank
• 1x USB Cable
• 1x User Manual
• 1x Warranty card

Simple packing. Customary Packing from the factory, the packing is subject to change without notice.

Order Tips

• Empty tank. You can buy e-juice separately.
• It doesn't come with 18650 lithium-battery.(High rate discharge battery ≥35A)

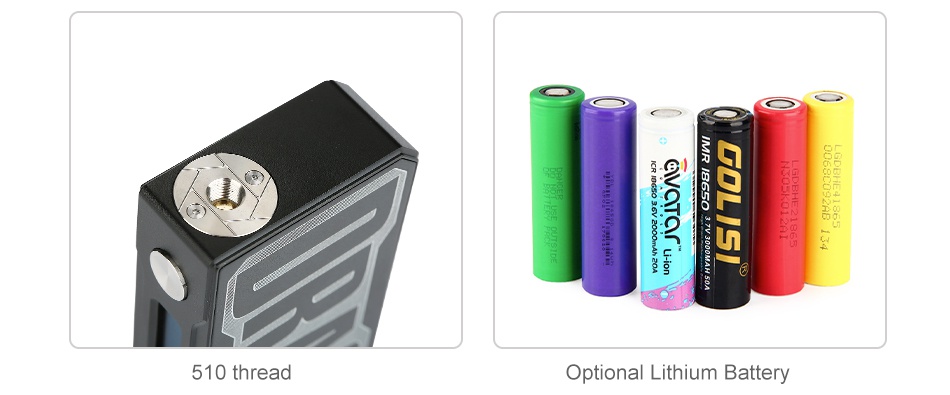

• 510 thread
• You can also buy other colors VOOPOO Drag MOD.
• The resin style drag has its own unique psychedelic pattern. We could not guarantee the product has the same pattern as that in pictures. We can only ship orders randomly. Hope you can understand.

Guarantee

Gene guarantees all clients one-year warranty for main boards for free. Please check Guarantee Policy.
