WISMEC Sinuous P228 with Elabo Kit

About WISMEC Sinuous P228 with Elabo Kit

If you talk about a high standard electronic cigarette manufacturer, WISMEC is one of the best options. It produces the finest ecigs manufactured in USA. There are a number of series by the company including Skyladon, el grande RDA alike and Presa 40w mod. WISMEC comes with a unique and highly creative design. Along with that, these e cigarretes have an economical price and have high durability. Hence, the number of vapers are getting attracted to this amazing brand for purchasing devices. There is no doubt that WISMEC eCigs are highly impressive.

The SINUOUS is a single 18650 box mod which produces a maximum output of 80 watts. This is a compact looking mod. The SINUOUS P80 comes with a 510 spring loaded connector that is centered. Along with that, there is a 0.96 inch screen that has three changeable colors. A hidden fire button is provided as well. You can purchase the SINUOUS P80 Kit or the P80 MOD in accordance with the needs you have.

Product Instructions

Parameters

Elabo Tank
Size: 25 x 52.8mm
Capacity: 4.9ml (triple 0.2ohm head)/4.6ml (NS Triple 0.25ohm head)
Coil: Triple 0.2ohm (40-80W); NS Triple 0.25ohm (40-120W)

Sinuous P228 MOD
Size: 43.6 x 29 x 86.7mm
Thread: 510 spring loaded thread
Cell type: high-rate 18650 cell (not included)
Output mode: VW/TC-Ni/TC-Ti/TC-SS/TCR mode
Output wattage: 1-228W
Resistance range: 0.05-1.5ohm (TC);0.1-3.5(VW)
TEMP Range: 100-315C/200-600F
Max charging current: 2A
Max output current: 50A
Output voltage range: 0.5-9V

WISMEC Sinuous P228 with Elabo Kit contains

• 1x Sinuous P228 MOD (no cells)
• 1x Elabo tank
• 1x Triple 0.2ohm head
• 1x NS Triple 0.25ohm head
• 1x QC USB cable
• 2x User Manual
• 1x Warning card

Simple packing. Customary Packing from the factory, the packing is subject to change without notice.

• 510 thread. Compatible with most 510 thread cartomizers/tanks.
• It doesn't include any 18650 battery cells. Please use cells with discharge current above 25A.
• You can buy replacement 0.25ohm NS Triple Coil and 0.2ohm Triple Coil.
• You can download certificates (ROHS/CE/EMC/FCC/LVD).

Features

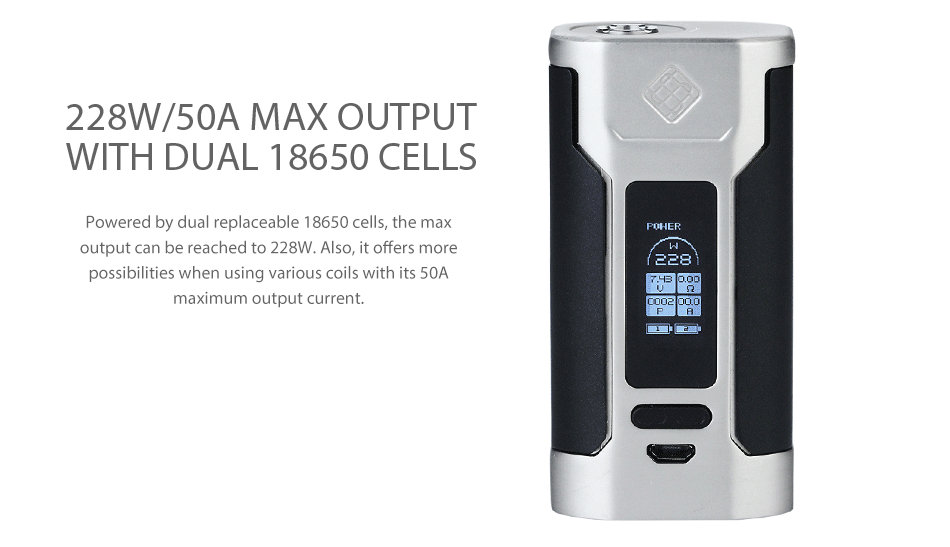

Compact Dual 18650 Mod with 228W Max Output

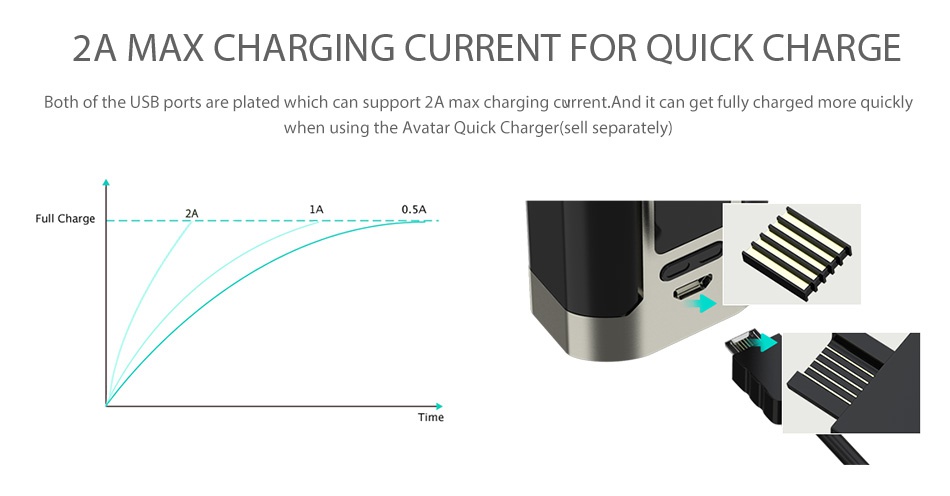

Quick Charge System with 2A Max Charging Current
Upgradeable Firmware with Identifiable Separate Battery Power
Serving as a Power Bank for Reverse Charging
Retractable Top Filling Solution & Innovative Childproof Lock System

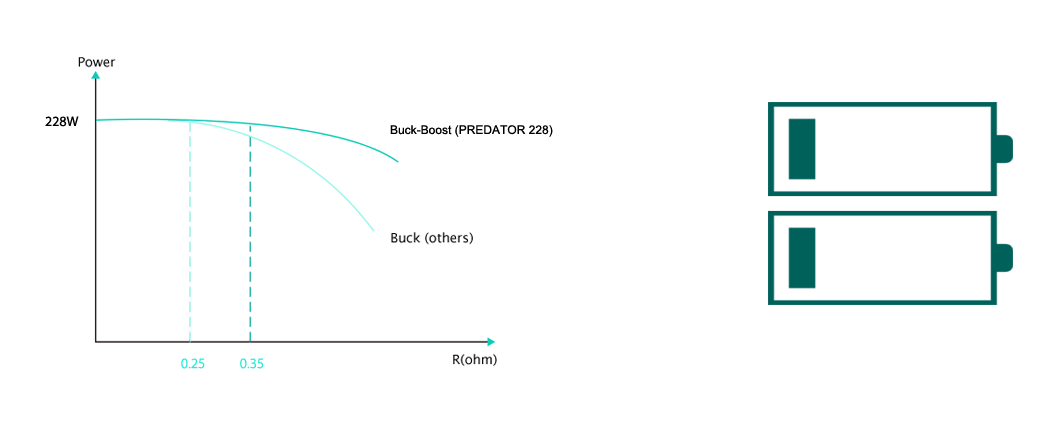

Nnovative Buck

He Balance Charge Technology Brings The

Operation Guide

Power on/off: Press the power button 5 times in quick succession to turn the device on and off.

Stealth function: While the device is on, simultaneously hold the fire button and the left regulatory button. This will switch the screen display on and off.

Key lock function: While the device is on, simultaneously press the two regulatory buttons. This will switch between Key lock and Key unlock function.

Micro UBS port function:The USB port can be used for charging and upgrading firmware.

Switch the display mode: By pressing the left and right regulatory buttons simultaneously in shutdown state, the screen display will rotate 180 degrees.

Shift among VW/TC-Ni/TC-Ti/TC-SS/TCR modes: Press the fire button 3 times to enter into the mode options. Press the right regulatory button to switch among VW/TC(Ni, Ti, SS)/TCR(M1, M2, M3)modes. Press the fire button to confirm.

Logo mode: When powered on, press the fire button and right regulatory button simultaneously and then you enter into the logo mode. By pressing the left and right regulatory button to choose between logo on and off, and press the fire button to confirm.

Preheat function:
1. Long press the fire button and right regulatory button simultaneously to enter the menu.
2. Press the right regulatory button to enter the preheat setting menu.
3. Press the fire button to switch between preheat power and preheat duration.
4. Press the left or right regulatory button to decrease or increae the parameter.
5. Long press the fire button to confirm.

Guarantee

3 months for Predator 228 MOD. Please check Guarantee Policy.
